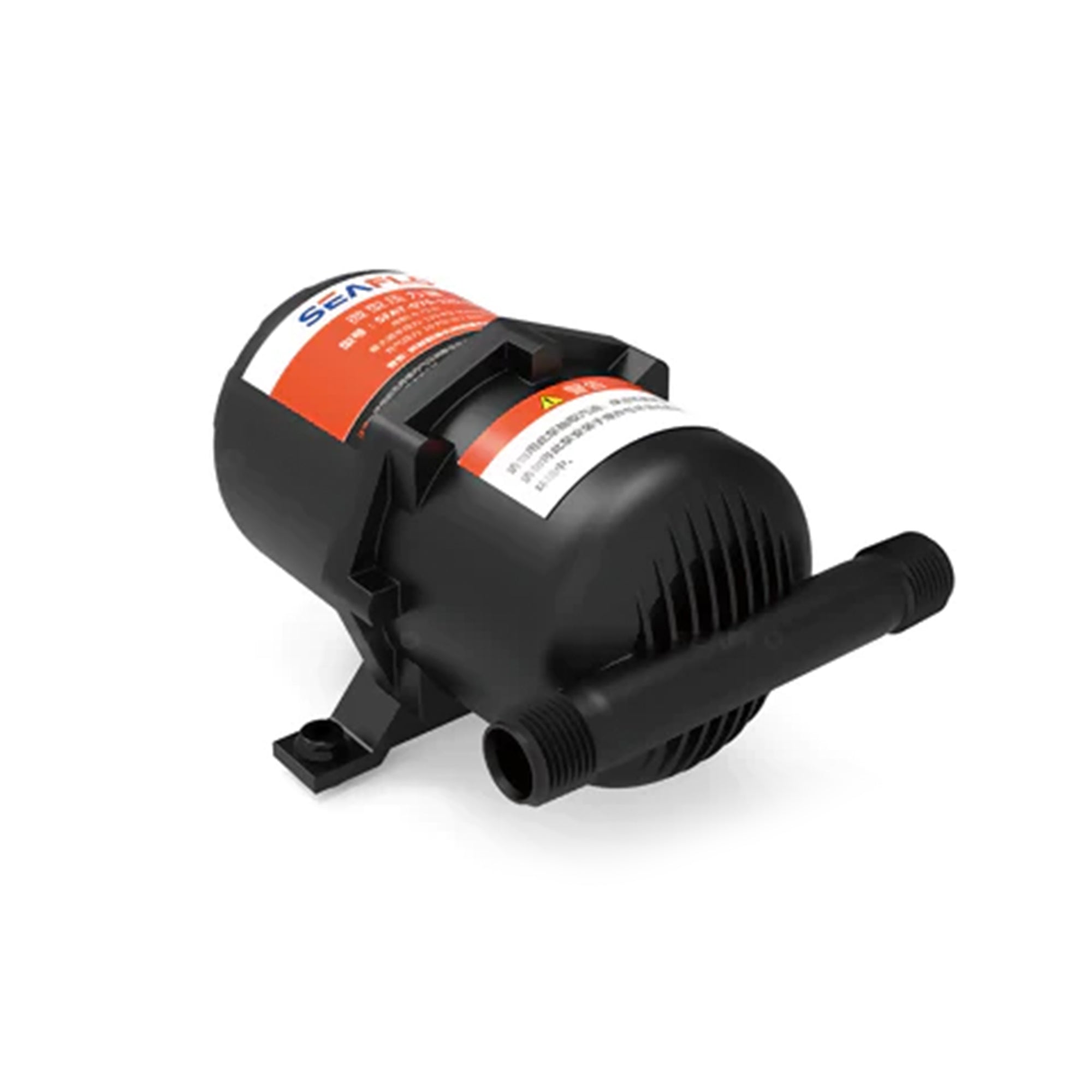

SEAFLO Pressurized Accumulator Tank 1L-125psi
SEAFLO Pressurized Accumulator Tank 1L-125psi
Accumulator tanks hold a reservoir of air and water down stream from the pump. The air acts as a cushion, absorbing pump and pressure fluctuations, smoothing the flow and making the system quieter. Accumulators allow the pump to reach shut-off pressure more smoothly which reduces the on/off cycle which gives better control of hot water delivery.
FEATURES & BENEFITS
|
- Smoother flow, quieter water systems. - Internal rubber membrane eliminates maintenance and allows universal mounting. - Better control of hot water temperatures. |
- Simply fitted to new or existing systems. - Longer pump life, lower battery drain. - Snap-in port fittings.- Can be fitted to new or existing systems. |
TYPICAL APPLICATIONS
Marine, RV
STANDARD CONFIGURATIONS
| Model | Internal Volume | Pre-charge |
Max Operating |
Air Fill Vale |
Inlet/Outlet Dia |
Weight | Dimensions |
SFAT-100-125-01 |
1.0L/33.8OZ |
10/0.7 | 125/8.6 |
standard automotive style tire valve |
1/2" MNPT | 1.46lbs |
12" x 4.6" |
APPLICATION
| Key | Description |
Quantity |
| 1 | Connector | 2 |
| 2 | Pump Cover | 1 |
| 3 | Diaphragm | 1 |
| 4 | Rubber Feet | 2 |
| 5 | Pump Housing | 1 |
| 6 | Screw | 8 |
| 7 | Relief Valve | 1 |
CAUTIONS
Do not use to pump gasoline, petrol or fluids with flash point below 37°C(98°F), explosion or death may occur.
Do not over pressurize tank. Pressures over 125PSI(8.6BAR) may rupture tank and cause personal injury.
