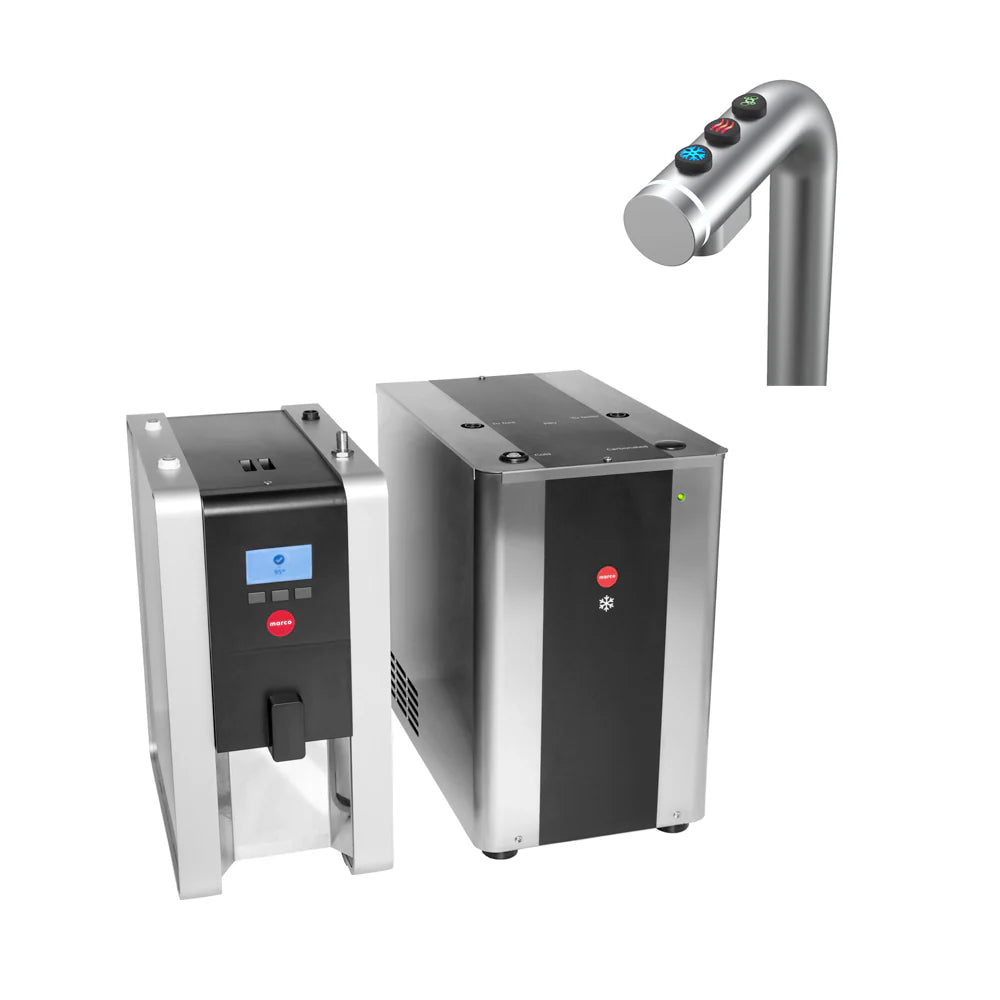

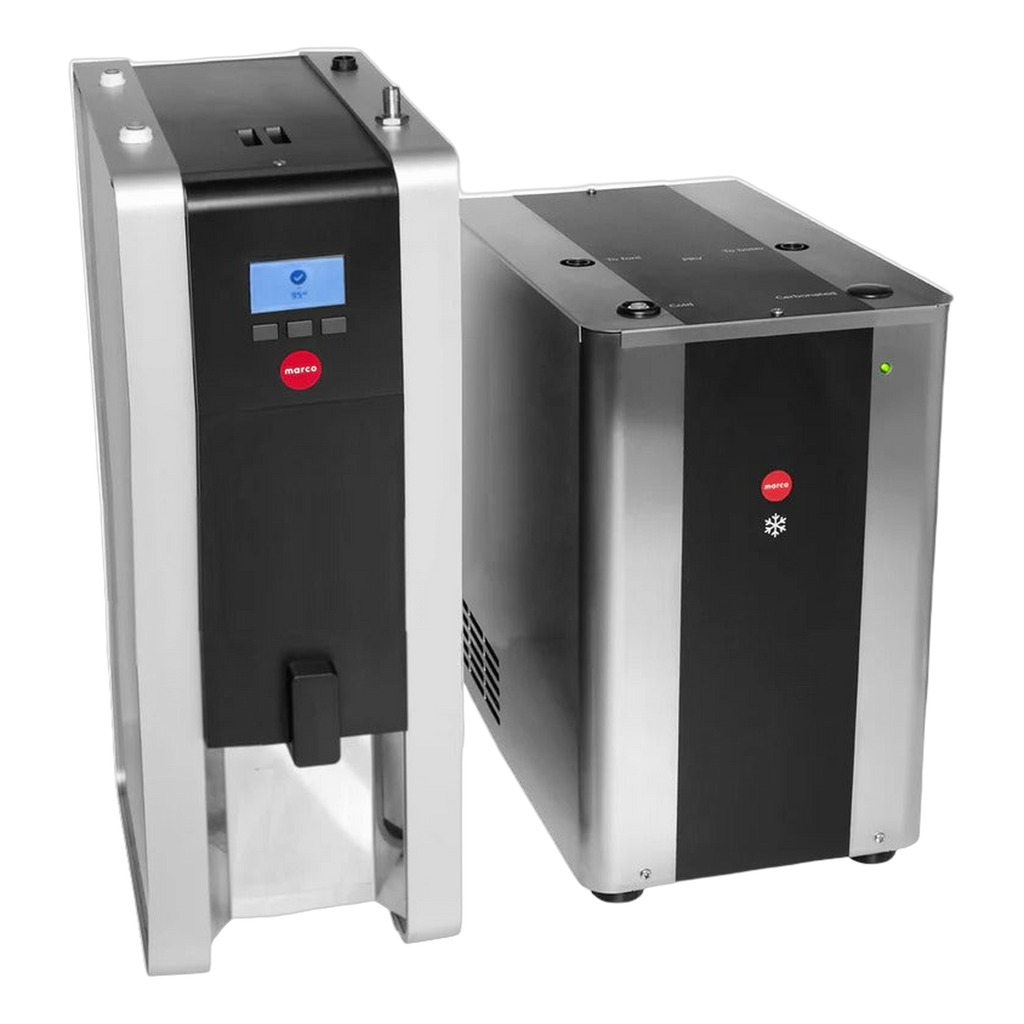

ماركو فريا HCS/HCS بلس – نظام موزع مياه ساخنة وباردة وفوارة (تحت المنضدة)

FRIIA HCS

First draw-off: 3 L

Cups per hour – hot (170 ml): 165

Cups per hour – cold/sparkling (170 ml): 235 (ΔT = 10°C)

Dimensions

• Font: D 30 × W 30 × H 292 mm (without drip tray; 247 mm tap to counter)
• Boiler: D 385 × W 210 × H 444
• Chiller: D 436 × W 259 × H 455

Weight

• Font: 740 g
• Boiler: 9.2 kg
• Chiller: 31 kg
• Chiller/carbonator: 35 kg

Power requirements

• Boiler: 2.8 kW
• Chiller: 180 W

Plumbing requirements

• Boiler: ¾" BSP
• Chiller: ¾" BSP

Chiller specs

• Cooling capacity: 35–40 L/hr
• Compressor power: 1/8 hp
• Cooling system: Aluminium block
• Refrigerant: R290

Packaging dimensions

• L 490 × W 300 × H 515 mm
• Boiler: 11 kg
• Chiller/carbonator: 35.5 kg
• Font: 2 kg
• Total weight: 48.5 kg

FRIIA HCS PLUS

First draw-off: 8 L

Cups per hour – hot (170 ml): 165

Cups per hour – cold/sparkling (170 ml): 235 (ΔT = 10°C)

Dimensions

• Font: D 30 × W 30 × H 292 mm (without drip tray; 247 mm tap to counter)
• Boiler: D 385 × W 210 × H 610
• Chiller: D 436 × W 259 × H 455

Weight

• Font: 740 g
• Boiler: 9.2 kg
• Chiller: 31 kg
• Chiller/carbonator: 35 kg

Power requirements

• Boiler: 2.8 kW
• Chiller: 180 W

Plumbing requirements

• Boiler: ¾" BSP
• Chiller: ¾" BSP

Chiller specs

• Cooling capacity: 35–40 L/hr
• Compressor power: 1/8 hp
• Cooling system: Aluminium block
• Refrigerant: R290

Packaging dimensions

• L 490 × W 300 × H 515 mm
• Boiler: 14 kg
• Chiller/carbonator: 35.5 kg
• Font: 2 kg
• Total weight: 51.5 kg
